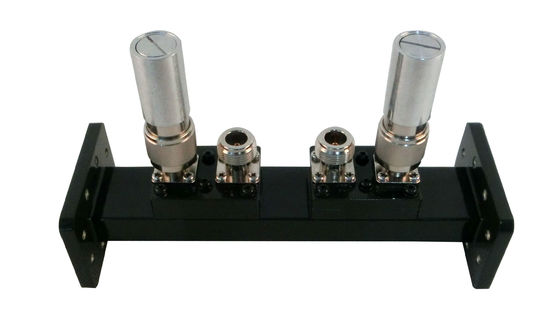

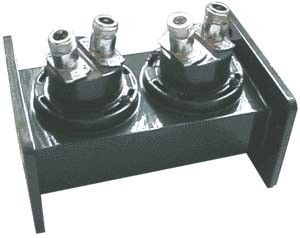

| Markieren: | 50dB Dual Directional Loop Coupler,1.1VSWR Dual Directional Loop Coupler,1.73GHz Dual Directional Loop Coupler |
||
|---|---|---|---|
CWJ stellt eine Standardproduktserie von den Schleifenkopplern her, die einen breiten Frequenzbereich umfassen. Zu mehr Information glauben Sie frei, um uns anzurufen und Ihren Bedarf mit einem unserer Vertriebsingenieure zu besprechen.
| Doppel-Diretional-Schleifen-Koppler-Produktpalette | |||||||||
| MODELL NEIN | FREQ-STRECKE | VSWR | KOPPELUNG |
DIREC TIVITY |
OPERATION Temperatur |
FLANSCH-ART |
WG ART |
VERBINDUNGSSTÜCK | MATERIAL |
| (Gigahertz) | Maximal | (DB) | Minute (DB) | (°C) | |||||
| CWJ14WDHC | 1.13-1.73 | 1,1 | 30-70 | 20 | -40~+70 | FDP14/FDM14 | WR650 | N-50K | Al/Cu |
| CWJ14WHHC | 1.13-1.73 | 1,1 | 30-70 | 20 | -40~+70 | FDP14/FDM14 | WR650 | N-50K | Al/Cu |
| CWJ14WDHHC | 1.13-1.73 | 1,1 | 30-70 | 20 | -40~+70 | FDP14/FDM14 | WR650 | N-50K | Al/Cu |
| CWJ18WDHC | 1.45-2.20 | 1,1 | 30-70 | 20 | -40~+70 | FDP18/FDM18 | WR510 | N-50K | Al/Cu |
| CWJ18WHHC | 1.45-2.20 | 1,1 | 30-70 | 20 | -40~+70 | FDP18/FDM18 | WR510 | N-50K | Al/Cu |
| CWJ18WDHHC | 1.45-2.20 | 1,1 | 30-70 | 20 | -40~+70 | FDP18/FDM18 | WR510 | N-50K | Al/Cu |
| CWJ22WDHC | 1.72-2.61 | 1,1 | 30-70 | 20 | -40~+70 | FDP22/FDM22 | WR430 | N-50K | Al/Cu |
| CWJ22WHHC | 1.72-2.61 | 1,1 | 30-70 | 20 | -40~+70 | FDP22/FDM22 | WR430 | N-50K | Al/Cu |
| CWJ22WDHHC | 1.72-2.61 | 1,1 | 30-70 | 20 | -40~+70 | FDP22/FDM22 | WR430 | N-50K | Al/Cu |
| CWJ26WDHC | 2.17-3.30 | 1,1 | 30-70 | 20 | -40~+70 | FDP26/FDM26 | WR340 | N-50K | Al/Cu |
| CWJ26WHHC | 2.17-3.30 | 1,1 | 30-70 | 20 | -40~+70 | FDP26/FDM26 | WR340 | N-50K | Al/Cu |
| CWJ26WDHHC | 2.17-3.30 | 1,1 | 30-70 | 20 | -40~+70 | FDP26/FDM26 | WR340 | N-50K | Al/Cu |
| CWJ32WDHC | 2.60-3.95 | 1,1 | 30-70 | 20 | -40~+70 | FDP32/FDM32 | WR284 | N-50K | Al/Cu |
| CWJ32WHHC | 2.60-3.95 | 1,1 | 30-70 | 20 | -40~+70 | FDP32/FDM32 | WR284 | N-50K | Al/Cu |
| CWJ32WDHHC | 2.60-3.95 | 1,1 | 30-70 | 20 | -40~+70 | FDP32/FDM32 | WR284 | N-50K | Al/Cu |
| CWJ40WDHC | 3.22-4.90 | 1,1 | 30-70 | 20 | -40~+70 | FDP40/FDM40 | WR229 | N-50K | Al/Cu |
| CWJ40WHHC | 3.22-4.90 | 1,1 | 30-70 | 20 | -40~+70 | FDP40/FDM40 | WR229 | N-50K | Al/Cu |
| CWJ40WDHHC | 3.22-4.90 | 1,1 | 30-70 | 20 | -40~+70 | FDP40/FDM40 | WR229 | N-50K | Al/Cu |
| CWJ48WDHC | 3.94-5.99 | 1,1 | 30-70 | 20 | -40~+70 | FDP48/FDM48 | WR187 | N-50K | Al/Cu |
| CWJ-48WHHC | 3.94-5.99 | 1,1 | 30-70 | 20 | -40~+70 | FDP48/FDM48 | WR187 | N-50K | Al/Cu |
| CWJ48WDHHC | 3.94-5.99 | 1,1 | 30-70 | 20 | -40~+70 | FDP48/FDM48 | WR187 | N-50K | Al/Cu |
| CWJ58WDHC | 4.64-7.06 | 1,1 | 30-70 | 20 | -40~+70 | FDP58/FDM58 | WR159 | N-50K | Al/Cu |
| CWJ58WHHC | 4.64-7.06 | 1,1 | 30-70 | 20 | -40~+70 | FDP58/FDM58 | WR159 | N-50K | Al/Cu |
| CWJ58WDHHC | 4.64-7.06 | 1,1 | 30-70 | 20 | -40~+70 | FDP58/FDM58 | WR159 | N-50K | Al/Cu |
| CWJ70WDHC | 5.38-8.17 | 1,1 | 30-70 | 20 | -40~+70 | FDP70/FDM70 | WR137 | N-50K | Al/Cu |
| CWJ70WHHC | 5.38-8.17 | 1,1 | 30-70 | 20 | -40~+70 | FDP70/FDM70 | WR137 | N-50K | Al/Cu |
| CWJ70WDHHC | 5.38-8.17 | 1,1 | 30-70 | 20 | -40~+70 | FDP70/FDM70 | WR137 | N-50K | Al/Cu |
| CWJ84WDHC | 6.57-9.99 | 1,1 | 30-70 | 20 | -40~+70 | FBP84/FBM84/FBE84 | WR112 | N-50K | Al/Cu |
| CWJ84WHHC | 6.57-9.99 | 1,1 | 30-70 | 20 | -40~+70 | FBP84/FBM84/FBE84 | WR112 | N-50K | Al/Cu |
| CWJ84WDHHC | 6.57-9.99 | 1,1 | 30-70 | 20 | -40~+70 | FBP84/FBM84/FBE84 | WR112 | N-50K | Al/Cu |
| CWJ100WDHC | 8.20-12.4 | 1,1 | 30-70 | 20 | -40~+70 | FBP100/FBM100/FBE100 | WR90 | N-50K | Al/Cu |
| CWJ100WHHC | 8.20-12.4 | 1,1 | 30-70 | 20 | -40~+70 | FBP100/FBM100/FBE100 | WR90 | N-50K | Al/Cu |
| CWJ100WDHHC | 8.20-12.4 | 1,1 | 30-70 | 20 | -40~+70 | FBP100/FBM100/FBE100 | WR90 | N-50K | Al/Cu |
