| Markieren: | 2 WG Microwave Directional Coupler,2 Coax Microwave Directional Coupler,Dual Arm Microwave Directional Coupler |
||
|---|---|---|---|

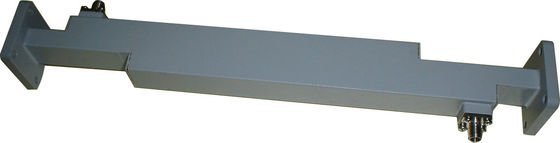

| Broadwall-Richtkoppler - Doppel-Arm 2 WG Häfen u. 2 koaxiale Hafen-Produktpalette | ||||||||
| MODELL NEIN | FREQ-STRECKE | VSWR | KOPPLUNG *** | RICHTDÄMPFUNG | VERBINDUNGSSTÜCK |
WG-ART (IEC/EIA) |
FLANSCH ART |
MATERIAL |
| (Gigahertz) | Maximal | (DB) | Minute (DB) | |||||
| CWJ26WDXC30NKPPA | 2.17-3.30 | 1,10 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | N | R26/WR340 | FDP/FDM | Al/Cu |
| CWJ32WDXC30NKPPA | 2.60-3.95 | 1,10 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | N | R32/WR284 | FDP/FDM | Al/Cu |
| CWJ40WDXC30NKPPA | 3.22-4.90 | 1,08 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | N | R40/WR229 | FDP/FDM | Al/Cu |
| CWJ48WDXC30NKPPC | 3.94-5.99 | 1,08 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | N | R48/WR187 | FDP/FDM | Al/Cu |
| CWJ58WDXC30NKPPC | 4.64-7.05 | 1,08 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | N | R58/WR159 | FDP/FDM | Al/Cu |
| CWJ70WDXC30NKPPC | 5.38-8.17 | 1,08 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | N | R70/WR137 | FDP/FDM | Al/Cu |
| CWJ84WDXC30NKPPC | 6.57-9.99 | 1,08 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | N | R84/WR112 | FBP/FBM/FBE | Al/Cu |
| CWJ100WDXC30NKPPC | 8.20-12.40 | 1,08 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | N | R100/WR90 | FBP/FBM/FBE | Al/Cu |
| CWJ120WDXC30SKPPC | 9.84-15.0 | 1,08 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | SMA | R120/WR75 | FBP/FBM/FBE | Al/Cu |
| CWJ140WDXC30SKPPC | 11.9-18.0 | 1,10 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | SMA | R140/WR62 | FBP/FBM/FBE | Al/Cu |
| CWJ180WDXC30SKPPC | 14.5-22.0 | 1,10 (Hauptleitung), 1,25 (sek) | 3-40 | 20-38 | SMA | R180/WR51 | FBP/FBM/FBE | Al/Cu |
| CWJ220WDXC30SKPPC | 17.6-26.7 | 1,10 (Hauptleitung), 1,50 (sek) | 3-40 | 20-38 | SMA, K2.92mm | R220/WR42 | FBP/FBM/FBE | Al/Cu |
| CWJ260WDXC30SKPPC | 21.7-33.0 | 1,10 (Hauptleitung), 1,50 (sek) | 3-40 | 20-38 | SMA, K2.92mm | R260/WR34 | FBP/FBM/FBE | Al/Cu |
| CWJ320WDXC30SKPPC | 26.3-40.0 | 1,10 (Hauptleitung), 1,50 (sek) | 3-40 | 20-38 | SMA, K2.92mm | R320/WR28 | FBP/FBM/FBE | Al/Cu |
